Mortuary Chamber
A mortuary chamber is a refrigerated storage cabinet designed to maintain a controlled low-temperature environment for the temporary storage of deceased bodies. Maintaining a controlled temperature helps slow the natural decomposition process when a body needs to be retained before examination, transportation, funeral arrangements or other required procedures.
Mortuary chambers are also commonly referred to as mortuary cabinets, mortuary freezers, dead body freezers, dead body storage freezers and body storage freezers.
iLabot Technologies manufactures mortuary chambers for hospitals, medical institutions, airports, railway facilities, research centres and government organizations.
Mortuary Chamber Manufacturer
iLabot Technologies manufactures mortuary chambers and dead body freezers for controlled-temperature storage of deceased bodies in hospitals, medical institutions, research centres, government facilities and other organizations requiring temporary body storage.

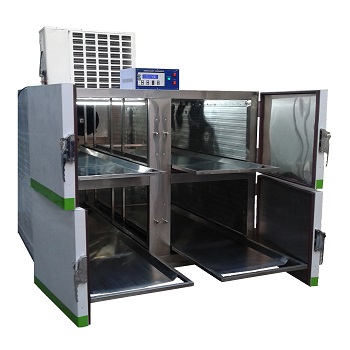

Our mortuary chambers are designed with a double-walled insulated chamber, SS 304 inner construction, PUF insulation, digital temperature control and forced air circulation. Standard operating temperatures are typically 2°C to 8°C, while customized temperature configurations can be developed for specific requirements.
We manufacture mortuary chambers in different body capacities, from single-body units to multi-body configurations, with customized designs available according to capacity, dimensions, installation requirements and application.
Mortuary Cabinet Technical Specifications |
|
| Model | SRC750 |
| Outer Construction | Powder Coated MS |
| Inner Construction | SS-304 |
| Door Construction | Inner wall is of SS 304 & outer is of powder coated MS |
| Castor Construction | Lockable |
| Display | LCD/LED |
| Range Temperature | 2 to 8 deg C |
| Sensor(temperature) | PT 100 |
| Controller(temperature) | PID |
| Illumination System | Door operated illumination system comprises of Fluorescent lights |
| Adjustable Alarm limits | Optional |
| Refrigerant(Condenser) | CFC free |
| Air Circulation(Condenser) | Efficient condenser with automatic evaporating system (condensate) Forced |
| Light Intensity | As per requirement |
| Eco-friendly refrigerants | Inbuilt |
| Equipped with coaxial blowers, quality compressors & evaporators | Inbuilt |
| Simplified cadaver handling | Inbuilt |
| Insulated door | Inbuilt |
| Chamber | Double Walled |
| Insulation | PUF |
| Capacity | 1/2/3/4/6 (Customizable) |
| Power Supply | 220 V & 50/60 Hz |
| Maximum Permitted Load per shelvw | 155 KG |
Mortuary Chamber Explainer Video
Mortuary Cabinet Applications/Uses
The primary use of a mortuary cabinet is to store and prevent a body from decomposing rapidly. Sometimes, it happens that a body has to be kept for long duration because of unexpected circumstances. We have supplied these dead body freezers to different industries such as:
1. Hospital and Medical Institutions
2. Airports
3. Railway Stations
4. Research Centres
5. Govt. Agencies
Mortuary Chamber FAQs
What is a mortuary chamber?
A mortuary chamber is a refrigerated storage system designed to maintain a controlled low-temperature environment for the temporary storage of deceased bodies and help slow the natural decomposition process.
What temperature does a mortuary chamber maintain?
Our standard mortuary chamber operates at a controlled temperature range of 2°C to 8°C. Customized temperature requirements can also be discussed for specific applications.
How many bodies can a mortuary chamber accommodate?
Mortuary chambers are available in different configurations to accommodate 1, 2, 3, 4, or 6 bodies. Larger-capacity and customized configurations can also be manufactured according to specific requirements.
What material is used inside a mortuary chamber?
The inner chamber is manufactured using SS 304 stainless steel. The chamber has double-wall construction with PUF insulation, while the outer body is made from powder-coated mild steel.
What type of temperature controller is used in a mortuary chamber?
Our mortuary chambers use a PID temperature controller with a PT100 temperature sensor for monitoring and controlling the chamber temperature.
Does a mortuary chamber have forced air circulation?
Yes. Our mortuary chambers use forced air circulation to support effective distribution of cooled air within the chamber and maintain the required temperature.
Can a mortuary chamber be customized?
Yes. Mortuary chambers can be customized according to body capacity, chamber dimensions, temperature requirements, installation conditions and other specific project requirements.
What is the price of a mortuary chamber in India?
The price of a mortuary chamber depends on its capacity, dimensions, construction, refrigeration configuration and customization requirements. Our mortuary chamber range starts at ₹2,30,000 + applicable taxes.
Where are mortuary chambers used?
Mortuary chambers are used in hospitals, medical colleges, government institutions, research centres, airports, railway facilities and other organizations that require controlled-temperature temporary body storage.
Do you manufacture mortuary chambers in India?
Yes. iLabot Technologies is a mortuary chamber manufacturer based in New Delhi, India. We manufacture different body-capacity configurations and provide customized solutions for institutional and application-specific requirements.
CONTACT
Related Test Chamber Products
Our range also includes
1. Salt Spray Chamber
2. Temperature Humidity Test Chamber
3. Laboratory Deep Freezer
4. Plant Growth Chamber
5. Thermal Shock Test Chamber
6. Lyophilizer Freeze Dryers
Mortuary Chamber Price
The price of a mortuary chamber depends on its body capacity, dimensions, construction, refrigeration configuration and customization requirements.
Our mortuary chamber range starts at ₹2,30,000 + applicable taxes.
For an accurate quotation, please share your required body capacity and any specific technical or installation requirements.
