Horizontal Autoclave

Horizontal Autoclave

Cylindrical and Horizontal Shaped Steam Sterilizers

Horizontal Autoclave is used to sterlize medical, research and surgical tools from all forms of pathogens, biological organic matter. It has a horizontally shaped chamber with either a single door or a double door option to make managing sterile goods easier. Sterilization process is achieved though creating an inhospitable evironment of steam and high pressure. As the name suggests, these have a horizontal shaped chamber which can accomodate bigger size with large quantites of equipment for sterilization. Steam generated inside the autoclave creates high pressure and heat with temperature reaching upto 120 degree and an operating pressure of 15-30 psi. Widely regarded as the best method of sterlization steam sterlizers are an ideal choice for hospitals, clinics, labs, research & development centers.


Types of Horizontal Autoclaves

There are different types of Autoclaves available and the one that is the most sought after is the horizontal autoclave. As the name suggests, horizontal autoclaves are bigger and wider. They have a significant width when compared to Vertical Autoclaves which are a cylindrical-shaped autoclave and are not wide to accommodate big items/tools for sterilization. iLabot Technologies offers 2 types of Horizontal Autoclaves available with sub-categories pertaining to capacity and size. Please check these in detail for your understanding and requirements:

1. Rectangular-shaped Horizontal Autoclave – These are rectangular-shaped and have wider space available for use. iLabot Technologies is a 2-decade old horizontal autoclave manufacturer and we offer these in 3 models with 335 ltr, 450 ltr and 850 ltr capacity.

2. Cylindrical-shaped Horizontal Autoclave – These autoclaves are best used where space is limited and where the products are not big but the quantity is more. Our range includes 78 ltr, 150ltr, 162 ltr, 175 ltr, 235 ltr, 300 ltr and all other bespoke orders.


Horizontal Autoclave Manufacturer

We, iLabot Technologies are horizontal autoclave manufacturer in India. iLabot brings to you wide range of horizontal autoclaves for hospitals, laboratory research and waste decontamination etc. Our horizontal autoclaves are constructed in both cylindrical and rectangular designs. Each unit is made to match national and international sterilization standards with features that are easy to understand and operate. Our products are made out of stainless steel to facilitate rugged construction and safe operation for long periods of time.

We have been manufacturing these horizontal type autoclaves for over 25 year. At iLabot, we represent most innovative and advanced manufacturing technologies supported by our most reliable customer support network throughout India.

Our horizontal autoclaves are made in triple walled construction and feature steam stock provision, digital temperature cum timer controller, pressure safety valves and double safety of radial locking system. Each unit is tested at 2.5 times the working pressure in order to ensure you that you are buying the most reliable machine at very competitive price in India.


Our Autoclave Product Range

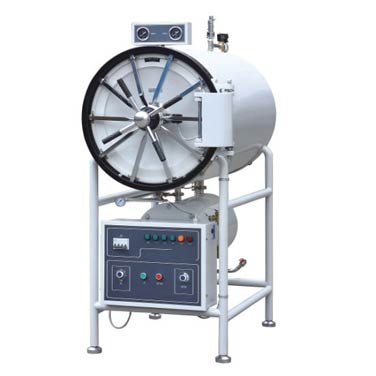

Cylindrical Horizontal Autoclave

Model HCY75 HCY150 HCY175 HCY235
Capacity 75 Ltrs 150 Ltrs 175 Ltrs 235 Ltrs
Chamber Dimension 400 x 600mm 400 x 1200mm 500x 900mm 500 x 1200mm
Construction SS 304 SS 304 SS 304 SS 304
Power Consumption 6 Kw 9 Kw 9 Kw 12 Kw
Operating pressure 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2 1.2/2.1kg/cm2
Operating Temperature 121°C 121°C 121°C 121°C
Voltage 440V 440V 440V 440V

Rectangular Horizontal Autoclave

Model HRC180 HRC430
Capacity 180 Ltrs 430 Ltrs
Chamber Dimension 450x450x900mm 600x600x1200mm
Construction SS 304/316 SS 304/316
Power Consumption 12 Kw 18 Kw
Operating pressure 1.2/2.1kg/cm2 1.2/2.1kg/cm2
Operating Temperature 121°C 121°C
Voltage 440V 440V

Optional Accessories

  • PLC + HMI
  • Dressing drums
  • Spare gasket
  • GMP model
  • RS232 printer connection

Features

Triple walled construction Stainless steel construction
Hydraulic tested up to 40 psi Working temperature up to 134°C
Working pressure 15 to 30 psi Radial locking system
Automatic low water cut-off device Reliable pressure release valves
Analog or digital pressure display Digital temperature cum timer controller
High quality door gasket Stainless steel lid

* We also undertake custom capacity orders.

Note: We take security and safety of our users as our number 1 priority and all autoclaves made by ilabot Technologies are thoroughly tested and inspected during the manufacturing process. Autoclaves manufactured and delivered by us are 100% safe for use.


Horizontal Autoclave: Videos

Check out our videos of Rectangular shaped and Cylindrical shaped horizontal autoclaves.

Rectangular Shaped Horizontal Autoclave



Cylindrical Shaped Horizontal Autoclave



How to operate a Horizontal Autoclave

Once fully installed, horizontal autoclaves are easy to operate. Safe operation steps are as follows:
1. Unlock the outer chamber by rotating the lock mechanism.
2. Add sufficient level of water for steam generation in the water storage tank.
3. Make sure that the chamber is clean(clean if required).
4. Place the items to be sterilized in the inner chamber.
5. Close the lid and turn the power on.
6. Monitor change in temperature and pressure till desired levels have been achieved.
7. Release steam/pressure if necessary
8. Turn-off power once the process is complete and release the steam/pressure using the release valve.
9. Carefully remove the sterlized products.

We also have a dedicated Youtube Channel for information on autoclaves, Cleanroom Equipment, Incubators, Laboratory Shakers, Laboratory Water Bath Equipment and Laboratory Ovens. Visit us on YOUTUBE.

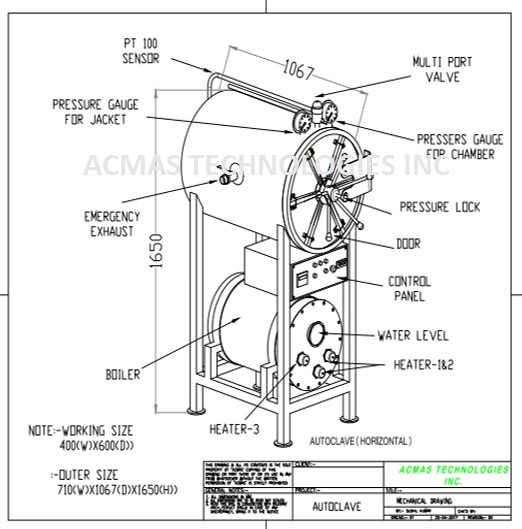

Horizontal Autoclave: Diagram Of Main Component & Parts

There are many important in a horizontal autoclave. We here are listing some of the main components below:

Horizontal Autoclave diagram
Power Switch: The main power I/O (on/off) switch controls all power to the unit of the horizontal autoclave and must be in the ON position before any systems are operational.

Main Temperature Control: The Main Temperature Control consists of the digital display and UP and DOWN arrow pads for inputting set point temperatures and calibration of the autoclave machine.

Heating Lamp: This pilot lamp is ON when the unit is heating up to set point and is blinking when controlling temperature at set point.

Water level indicator: It is provided for indicating the water inside the chamber. It should not be more than it‘s mentioned level .

Safety valve: It provide for safety from high pressure condition. Safety valve becomes open when pressure of the chamber becomes high.

Pressure release valve: Use pressure release valve to release pressure of the chamber the horizontal autoclave after completion of work. It is a manual handle attached with system .

Water release valve: Use water release valve for releasing water from working chamber of the system.

Pressure gauge: It is pneumatic type pressure gauge. It is provided on front side of the machine for pressure display of working chamber.

Pressure Control Switch: Cut down the electrical connection when certain pressure reaches its set value inside the chamber.

We have tried to add all important features, details pertaining to Horizontal autoclaves and if you would like to know more please get in touch with us via the contact number on our website or by submitting the query form.

CONTACT

Your Name

Email Address

Company Name

Phone Number

Your Address

Your message




Horizontal Autoclave Price/Cost

Horizontal Autoclave Manufacturer

iLabot Technologies has been manufacturing horizontal and cylindrical autoclaves in India for over 25 years. We are a brand from Acmas Technologies Inc. group. Our Horizontal Autoclaves range start at 2,50,000 INR + taxes. In case you have a customized requirements, please fill up the contact form or call us on the number shared below, our team will get in touch and provide assistance pertaining to your queries and doubts. iLabot Technologies is direct manufacturer and supplier of all types of autoclaves and that allows us to reduce the cost. Our range also includes Vertical Autoclaves, Double Door Autoclaves, Cement Autoclaves, Dental Autoclaves and Portable/pressure cooker type autoclaves sterilizers and laboratory test equipment.
