BOD Incubator Manufacturer in India

What is a BOD Incubator

The full form of BOD Incubators is Biological Oxygen Demand Incubator. These are used for growth, study and research of micro-organisms, yeast, determining Biological Oxygen Demand, culture storage, test tissue culture growth, incubation, measure & analyze the contamination of water with organic matter by checking Nitrogen levels. Equipped with both heating and cooling system the user can create a stable thermal environment within a desired range of anywhere between 10°C - 60°C. They are also known as bacteriological incubator, refrigerated incubator or low temperature incubators.

BOD Incubator Manufacturer

iLabot Technologies is a manufacturer of Biological Oxygen Demand / BOD Incubator. Our standard range has 4 models each for humidity and basic incubators with 2, 3 and 4 tray capacity. iLabot brings to you BOD Incubators that are made with high efficiency refrigeration system and imported temperature controller for excellent working performance. These incubators are also known as Biological Oxygen Demand Incubators and are widely used in research laboratories. We also manufacture CO2 Incubators, Bacteriological Incubators and Orbital Incubator Shakers.

Incorporated with advanced microprocessor control system and high quality compressor, these BOD Incubators are ideally suitable for bacteriological analysis. These incubators are used for ascertaining the presence of bacteria present in the water samples. We offer these incubators with self-calibration mode, audible alarm and wire shelves to our clients. Highly recommended for drinking water testing, the offered incubation are provided with sight glass which facilitates in visible observation during experiments. The digital controllers are incorporated in these incubation for highly efficient temperature control.

BOD Incubator Technical Specifications

Technical Specifications
Model	BOD100	BOD200	BOD285	BOD325
SKU	iLabot-BOD-4CF	iLabot-BOD-5CF	iLabot-BOD-6CF	iLabot-BOD-7CF
No. of trays	2 trays	2 trays	3 trays	4 trays
Temperature	10°C to 60°C
Temperature accuracy	±0.5°C
Humidity System	Ambient to 90%(Optional)
Controller	Imported PID controller
Refrigeration	CFC free R134A
Air circulation	Blower system
Inner chamber	SS 304
Outer	Powder coated MS
Insulation	PUF insulation
Light	Led light in chamber
Alarm	Temperature low / high
Power	220 Volts 50Hz
Optional	All stainless steel construction Data logger SMS mobile alert Door access security system Digital timer
Download Brochure

Features of BOD Incubator

• Rugged and durable construction
• Corrosion resistance chamber
• Long life CFC free refrigeration system
• Imported temperature controller
• Temperature high / low alarm
• Thick PUF insulation

Types of BOD Incubators

iLabot Technologies manufactures three type of BOD Incubator Chambers. Please check these in detail for your understanding and requirements:

1. BOD Incubator – With the temperature settings range of 5°C to 60°C, user can easily set the temperature and carry out tests.

2. BOD Incubator with shaking function – With standard features, this one has an additional shaker function that allows constant shaking for constant stirring of test subject.

3. BOD Incubator with humidity function - A humidity maintenance feature is also available for testing a subject's oxygen consumption at different temperature and humidity levels.

* We also undertake custom capacity orders.

Note: We take security and safety of our users as our number 1 priority and incubators made by ilabot Technologies are thoroughly tested and inspected during the manufacturing process. BOD Incubators manufactured and delivered by us are 100% safe for use.

What are the Uses of BOD Incubator?

BOD incubators, or Biological Oxygen Demand incubators, are essential pieces of equipment in a wide range of research and development settings. These specialized incubators are designed to provide the precise temperature, humidity, and oxygen levels needed to cultivate and grow a variety of biological samples, including microorganisms, tissues, and cells.

Here are just a few of the many uses for a BOD incubator:

Microbiology labs: BOD incubators are commonly used in microbiology labs to culture and grow microorganisms for research and analysis.

Biotechnology research: Biotechnology researchers rely on BOD incubators to cultivate cells and tissues for use in drug development, gene therapy, and other areas of study.

Environmental monitoring: BOD incubators are also used in environmental monitoring to measure the amount of oxygen consumed by microorganisms in water, soil, and other samples.

Food and beverage industry: The food and beverage industry uses BOD incubators to test the quality and safety of products by analyzing the growth of microorganisms in samples.

No matter what your research or development needs may be, a BOD incubator is an invaluable tool for cultivating and growing a wide range of biological samples. Invest in a high-quality BOD incubator to take your work to the next level.

BOD Incubator Principle & Diagram

The working principle of a BOD Incubator is to create an stable thermal environment artificially. The temperature can range anywhere from 10°C - 60°C depending on the user's requirement. Alternatively, the temperature can be increased or decreased during intervals to mimic natural environment. This ideal environment will then help the user replicate best results.

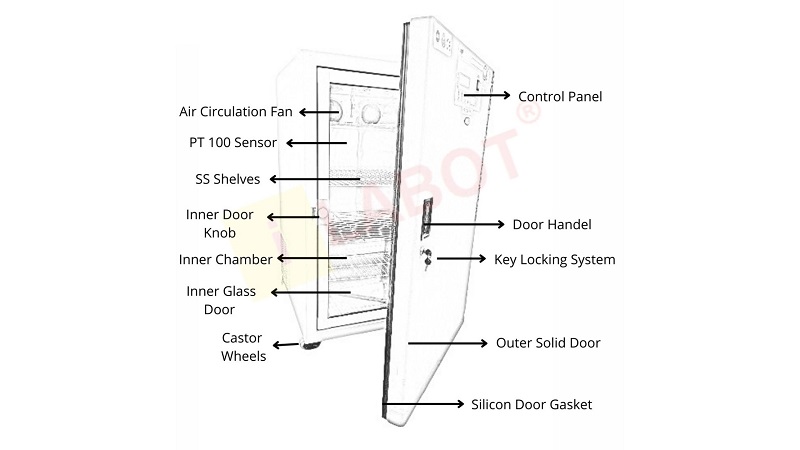

Parts of BOD Incubator

A BOD incubator consists of many part. Having said that there are some that are critical to the functionality of the equipment and then there are some that are for supporting purposes. Below is a list of all the important parts:

Main Parts
- Outer solid door
- Control panel to adjust temperature and humity levels on the main Door.
- Inner glass door
- Incubation Chamber
- Stainless Steel Shelves
- PT 100 Sensor
- Air Circulation Fan
Other Important Parts
- Silicon door gasket
- Door Handle
- Key locking system
- Castor Wheels
- Inner door knob

Frequently Asked Questions

What is a BOD Incubator?

A BOD Incubator is a Biological Oxygen Demand incubator used for microbiology, water testing, bacterial culture and laboratory research.

What is the difference between a BOD Incubator and a Bacteriological Incubator?

A BOD Incubator includes both heating and refrigeration systems, while a bacteriological incubator generally provides heating only.

Can a BOD Incubator be supplied with humidity control?

Yes. BOD Incubators can be supplied with optional humidity control systems for specialized laboratory applications.

What industries use BOD Incubators?

BOD Incubators are used in pharmaceutical, microbiology, environmental, food and beverage, agriculture, and water testing laboratories.

Can BOD Incubators be customized?

Yes. BOD Incubators can be customized with different capacities, humidity systems, data loggers, chamber configurations, and application-specific features.

What is the temperature range of a BOD Incubator?

The temperature range of iLabot BOD Incubators is 10°C to 60°C with high temperature accuracy and optional humidity control.

What is the purpose of a BOD Incubator?

A BOD Incubator is used to maintain a controlled low temperature environment for microbiological studies, water testing, biological oxygen demand determination and culture storage.

What is the price of a BOD Incubator?

The starting price of iLabot BOD Incubators is approximately ₹85,000 plus applicable taxes. Pricing may vary depending on capacity, customization requirements, and optional features.

BOD Incubator Demo Video

Check out our demo video of a BOD Incubator.

BOD Incubator with Humidity Function

Demo video of BOD Incubator with Humidity Control.

How to Operate a BOD Incubator

Once installed, BOD Incubators are easy to operate. Safe operation steps are as follows:
1. Open the BOD Incubator main door.
2. Open the incubator chamber.
3. Add the required number of trays and adjust the height accordingly.
4. Add test subject and close the incubator chamber and main door.
5. Turn on power and switch on the main power switch to start the incubator.
6. Set temperature settings as per requirements.
7. Set humidity settings as per requirements.
8. Check low water indicator periodically.
9. Switch off the Incubator and Remove test items(once tests are complete).
