CO2 Incubator
They are used for cell, tissue and bacterial cultivation and in high demand in various sectors such as oncology, immunology, genetics and biological engineering etc. These incubators are equipped with IR sensor, CO2 injection system and a temperature controller to maintain the environment inside the chamber.
CO2 Incubator Manufacturer
iLabot Technologies is a CO2 incubator manufacturer based out of New Delhi, India. We offer CO2 incubators that are equipped with all the advanced and innovative features to provide high accuracy and precision in the results. These incubators are intended to fulfill the requirements of different industries and research organizations. Our specialists have engineered these innovative and reliable systems to suit the needs and requirements of customers.
iLabot CO2 Incubators are made with high quality steel construction for long durability and performance. These units are made in various standard sizes such as 80 Liters, 160 Liters and 250 Liters. Each incubator is made with mirror finish stainless steel inner chamber and outer cabinet is made of powder coated MS sheet. Temperature, CO2 and humidity are controlled by imported LED controller. These incubators also feature over temperature protection. Each unit is sold and supplied at highly reasonable price in India.
CO2 Incubator Technical Specifications |
|||||
| Model | CO2-80 | CO2-160 | CO2-250 | ||
| Volume | 80 Liters | 160 Liters | 250 Liters | ||
| Trays | 2 | 3 | 4 | ||
| Temperature Range | 5°C above ambient to 50°C | ||||
| Temperature Controller | Microprocessor based PID | ||||
| Temperature Uniformity | ±0.35°C at 37°C ±0.5°C | ||||
| Temperature Sensor | PT-100 | ||||
| Display | LED | ||||
| Heating System |
|
||||
| CO2 | Range | 0-20% | |||
| Accuracy | ± 1% | ||||
| Sensor | Infrared CO2 Sensor | ||||
| Rate | ≤ 5minutes | ||||
| Humidity | Upto 95% | ||||
| Water reservoir system | 3 liters | ||||
| Insulation | 75 mm (Glass Wool) | ||||
| Power Consumption | 500W / 750W / 950W | ||||
| Power Supply | 220 V , Single Phase 50/60Hz | ||||
| CO2 Cylinder & Regulator | Optional (Purchase Locally) | ||||
Features
- Air or water jacket construction
- Corrosion resistant durable exterior
- LCD control system for temperature, CO2 and humidity
- Parameter variation alarms
- Imported IR sensor
- UV sterilization
What are CO2 Incubators?
A CO2 incubator is used for cell, tissue and bacterial cultivation and in high demand in various sectors such as oncology, immunology, genetics and biological engineering etc. These incubators are equipped with IR sensor, CO2 injection system and a temperature controller to maintain the environment inside the chamber. It is also used for development of an infection model. Owing to these features, it is widely accepted by researchers. CO2 Incubators are critical tools for life science applications, where maintaining a precise temperature, humidity and CO2 levels is needed. They maintain an environment having optimal conditions for the growth of cells.Parts of CO2 Incubator

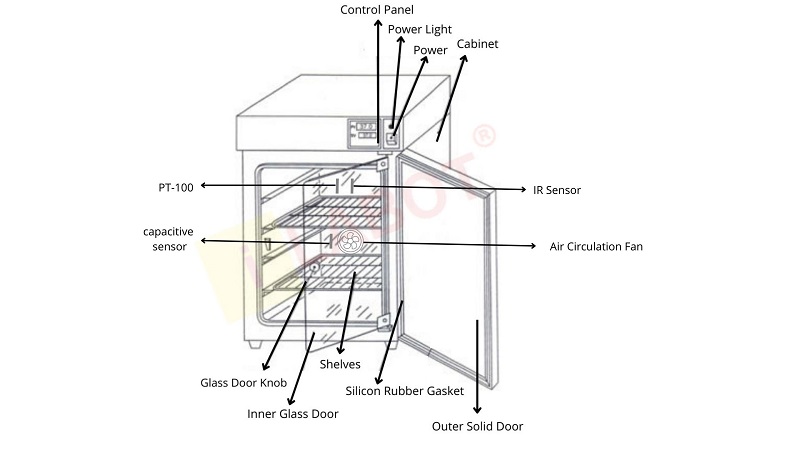

A CO2 incubator consists of many part. Having said that there are some that are critical to the functionality of the equipment and then there are some that are for supporting purposes. Below is a list of all the important parts:
Main Parts
- Outer solid door
- Control panel to adjust temperature and CO2(upto 20% RH).
- Inner glass door
- Incubation Chamber
- Stainless Steel Shelves
- PT 100 Sensor for Temperature
- Capacitive Sensor for Humidity
- IR(Infrared) Sensor for CO2
- Air Circulation Fan
Other Important Parts
- Silicon door gasket
- Door Handle
- Key locking system
- Inner door knob
