Biosafety Cabinet
Biosafety Cabinets are designed to meet most demanding biological applications. These cabinets are useful where personal, product and environment protection is necessary. They help in containing unwanted, dangerous and infectious agents. The air flow system they follow is 70% air recirculation and 30% air exhaust. A well manufactured Biosafety cabinet helps in protecting the user, the test object as well as the surrounding environment from getting contaminated. This is done using 3 basic steps:
1. CLEAN AIR CIRCULATION: Clean air is circulated within the cabinet. Air is filtered through HEPA filters. The air flow system flow 70% recirculation and 30% exhaust.
2. SANITIZATION: To clean up micro-organisms on the surface of the work area. Two additional steps are taken:
a. UV light is turned on for a duration of around 15 minutes.
b. Final sanitization is done using alcohol based sanitizer.
3. SAFETY: While working on the pathogens, chemicals: the sash door(made of acryllic sheet) should be lowered atleast by 50% to prevent minimum with outside environment.
Biosafety Cabinet Manufacturers
iLabot Technologies is a Biosafety Cabinet manufacturer based out of New Delhi, India. Our manufactured products designed for quality, rugged design and comfortable working. Each cabinet is designed to provide maximum protection to operator, product samples and surrounding environment. Having equipped with high quality and branded HEPA filters they offer efficient contaminant protection. Our biosafety cabinets are made with 10 degree sloped front in order to provide maximum operator comfort. Stainless steel workbench lets you easily clean the bench after experiment. The external body is made of powder coated MS which features corrosion resistant surface and prevents microbial and bacterial growth on the cabinet walls. Each part of the chamber is nicely designed and fabricated ensuring you are buying genuine product at very economical price in India.
Standard models of our Biosafety Cabinets come with On / Off switches for LED light, UV light and blower but we also have option for digital control panel, which offers you more comfortable working experience. A LCD control panel is fitted at front which displays air flow pressure, UV and LED light conditions, door open or close etc. These are low noise cabinets and the level remains between 65 to 70 db.
Technical Specifications |
||||
| Model No | BSC222 | BSC322 | BSC422 | BSC622 |
| Working Table Size | 2 x 2 ft. | 3 x 2 ft | 4 x 2 ft | 6 x 2 ft |
| Working Size | 2 x 2 x 2 ft. | 3 x 2 x 2 ft. | 4 x 2 x 2 ft. | 6 x 2 x 2 ft. |
| HEPA Filter Size | 2' x 2' x 6" | 3' x 2' x 6" | 4' x 2' x 6" | 3' x 2' x 6" |
| No. of Motor/Blower | 1 | 1 | 1 | 1 |
| Illumination | 1 x 40 w | 1 x 40 w | 2 x 40 w | 2 x 40 w |
| Cabinet Material | Powder Coated MS / Stainless Steel 304 | |||
| Work Table | Stainless Steel 304 | |||
| View Window | In work chamber to monitor the samples | |||
| Main Filter | HEPA Filter (99.97% efficient at 0.3 micron particles) | |||
| Pre-Filter | High efficiency pre-filter (Washable) | |||
| Sterilization | By U. V. Germicidal Tube in work area | |||
| Sliding Sash | Counter balanced door for effortless operation | |||
| Noise Level | Less than 65 db | |||
| Standard Accessory | Gas/Air cock and Multipoint 15/5 Amp. electric socket | |||
| Electric Supply | AC 230V, 50/60Hz | |||
| Optional |
|
|||

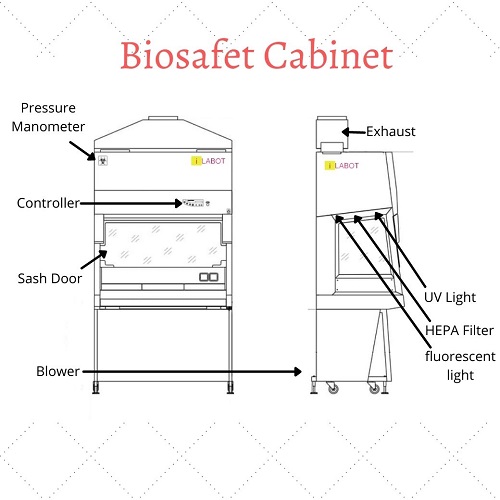

Biosafety Cabinet Diagram & Important Parts
The important parts of a Biosafety Cabinet are listed below:
1. Sash Door: These help the user to protect himself from inhaling or accidentally spilling the chemicals/pathogens or other harmful test products on themselves.
2. UV Light: UV lights are used to sanitize the area and eliminate micro-organics from the work space.
3. Fluorescent Light: It is used to illuminate the work area for clear visibility during testing.
4. HEPA Filter: These are used to filter air before it comes in contact with test material within the chamber.
5. Pressure Manometer: It shows the current pressure of the circulating air within the work chamber.
7. Controller: These are used to turn on and off and manage the timing of UV, fluorescent lights and fan.
8. Blower: It blows the re-circulated air with a mix of filtered air in the work area.
9. Exhaust: The discarded air exits the cabinet through the exahust pipe on top.
CONTACT
Biosafety Cabinet Price/Cost
iLabot Technologies has been manufacturing Class 2 Biosafety Cabinet devices in India for over 25 years. We are a brand from Acmas Technologies Inc. group. Our Biosafety Cabinet range start at 1,40,000 INR + taxes. In case you have a customized requirements, please fill up the contact form or call us on the number shared below, our team will get in touch and provide assistance pertaining to your queries and doubts.
